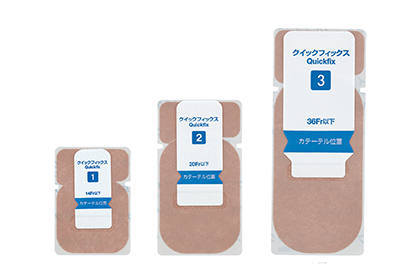

Specification
|

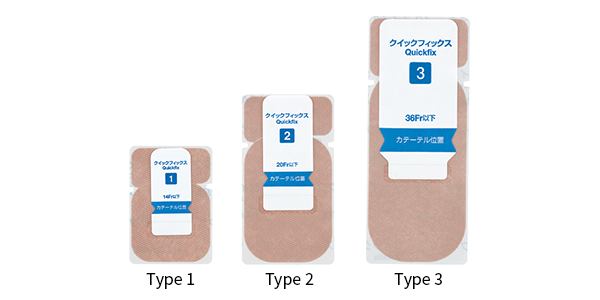

Type
|
Product Code No.
|
Specification |

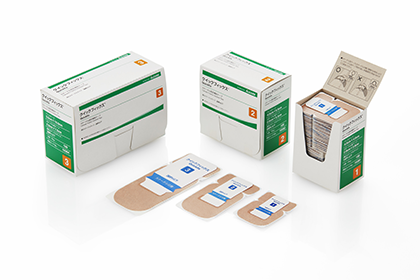

Contents Per Box
|
||
| Base Tape | Tape For Catheter | Applicable Catheter Size | |||

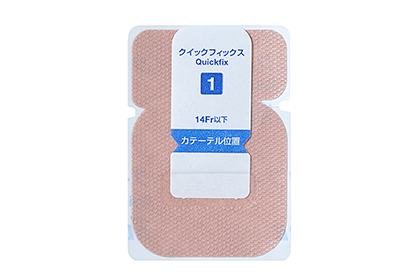

| 1 | 19391 | 4.0 cm x 4.0 cm | 2.0 cm x 3.8 cm | 14 Fr or less | 100 pieces |

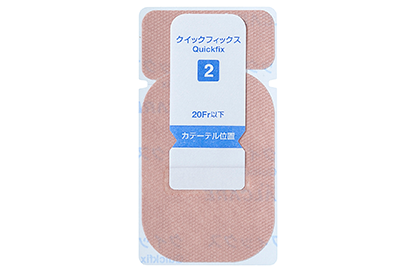

| 2 | 19392 | 4.5 cm x 6.5 cm | 2.5 cm x 5.2 cm | 20 Fr or less | 100 pieces |

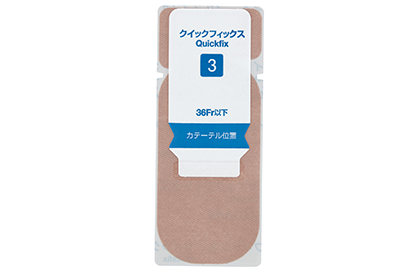

| 3 | 19394 | 5.0 cm x 10.0 cm | 4.0 cm x 7.5 cm | 36 Fr or less | 100 pieces |

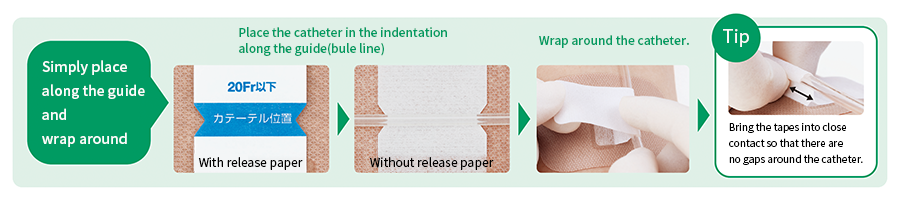

Usage procedure
Features

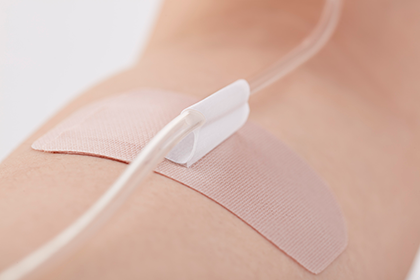

- By simply placing the catheter on the guide printed on the release paper and wrapping it, you can easily perform firm Ω fixation without putting pressure on the skin.
- The base tape remains as is, and only the catheter tape can be reattached as an integrated type that reduces skin trouble.
Quickfix is a dedicated product that has been carefully thought out to support catheter management based on opinions from the clinical site.

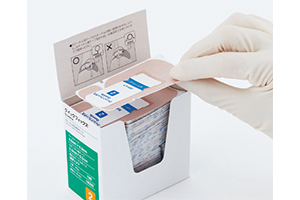

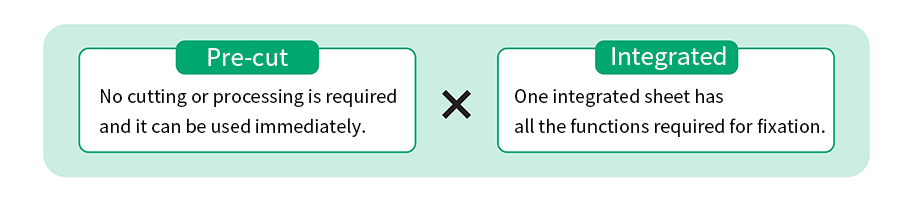

●Ready to use right out of the box
It is pre-cut, so no preparation or processing using scissors is required. Saves the nurses' time and effort.

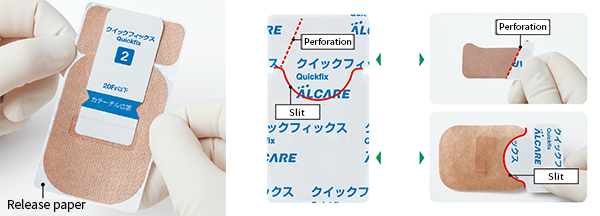

●Easy handling even with gloves
The easy-to-use release paper design allows for handling with gloves.
Easy to peel off with slightly larger release paper. It can be attached without touching the adhesive surface.

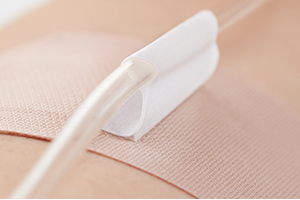

●Easily standardized "Ω fixation"
Just place on the guide and wrap around. Anyone can do the same Ω fixation, which firmly fixes without pressing the skin.

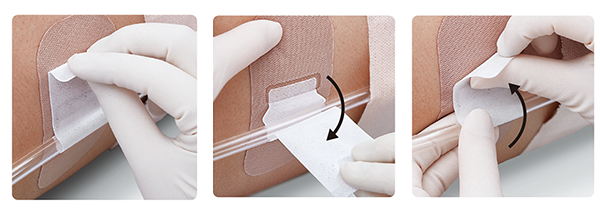

●Base tape stays as-is, integrated type for reattachment
The base tape remains as is and just the catheter tape can be reattached, which recudes skin trouble.
Tape edge is non-adhesive and easy to hold. Just the cathether part can be reattached.

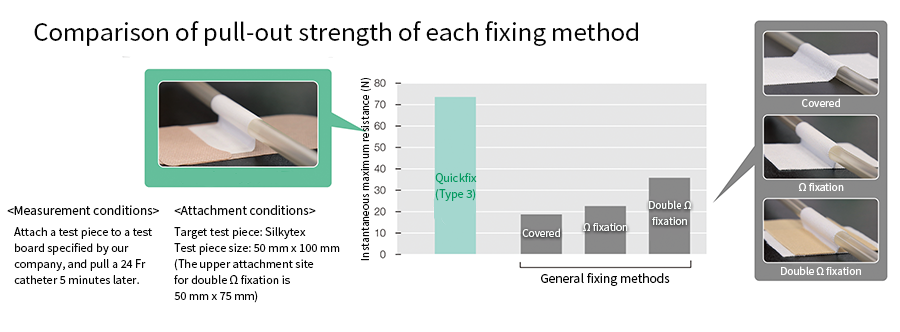

Comparison of pull-out strength of each fixing method
Quickfix has several times the pull-out strength compared to general fixing methods.
